Zynq Ultra scale+ based System on Module

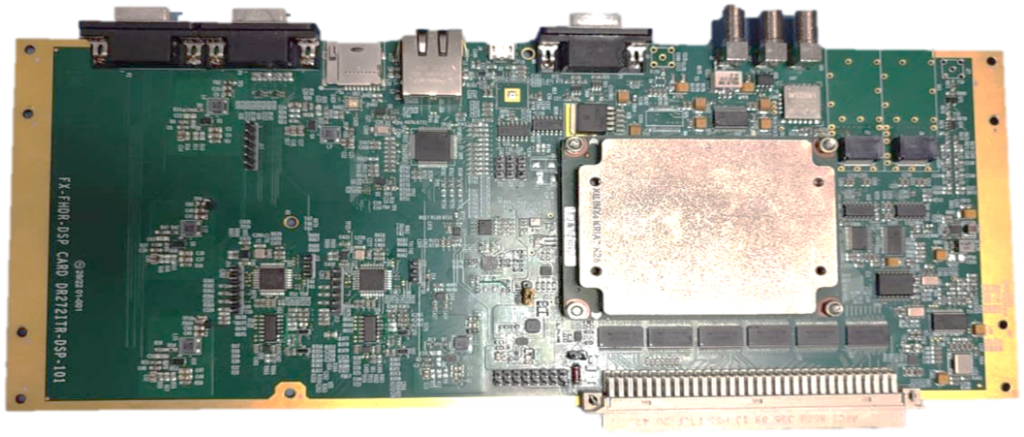

The Zynq Ultra Scale+ Based System on Module Board is a general-purpose development board for rapid-prototyping based on the Zynq Ultrascale+ MPSoC ,12 bit ADCs, and sensor interfaces for exploration with RADAR activities.
- Part Number : FET--SOM-101
- Lead Time : 4- 8 Weeks
- Device Support : Zynq Ultrascale+ MPSoC

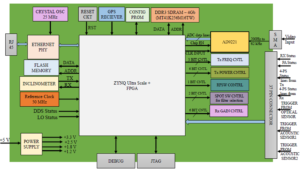

The Development Board equipped with Kria SOM, Dual GbE, ADC, GPS interface can be used for experimenting Radar Activities
Length: 280 mm
Height: 120 mm
Thickness (+/-5%): 1.6 mm
Layers : 8
Operating Environmental Temperature: -45°c to +85°c
Configuration
JTAG : Yes
SPI : Yes
QSPI : Yes
UART : Yes
Data Convertors
ADC : 12 Bit Single Channel
Memory
DDR3 : 4Gb (256M x 16)
Quad-SPI Flash: 512 Mb
EEPROM : 44 Kb
eMMC : 16 GB
Control and IO: IO Lines >> 100
Expansion Connectors: 96 Pin Euro Connectors >> 1
Clocking : Standard Clock Oscillator >> Yes
Power : +5V Regulator >> Yes
Board of Specifications
Length | 138.5mm |
Height | 92.6mm |
Thickness (+/-5%) | 1.6mm |
Operating Environmental Temperature | -45◦C to +85◦C |
JTAG | Yes |
SPI | Yes |
QSPI | Yes |
UART | Yes |
DDR3 | 4Gb (256M x 16) |
Quad-SPI Flash | 128Mb |
EEPROM | 4Kb |
IO Lines >> 100
D-Sub Connectors >> 2
Standard Clock Oscillator >> Yes
+5V Regulator >> Yes
Resources
Featuring the 4 Channel Data Acquisition Card – Zynq 700 Soc(XC7Z045-2FFG900I)
Programmable Logic Cells | 28K |
Block RAM (36 Kb Blocks) | 2.1 Mb (545) |
DSP Slices | 900 |
Look-Up Tables (LUTs) | 17,600 |
Maximum IO Pins | PS IO’s – 128 PL IO’s – 125 |
