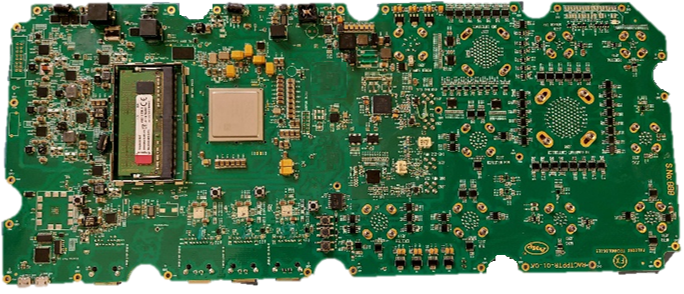

Zynq Ultra Scale+ Based Quad Ethernet Development Board
The Zynq Ultra Scale+ Based Quad Ethernet Development Board is a general-purpose development board for rapid-prototyping based on the Zynq Ultrascale+ XCZU9EG-2FFVB1156I MPSoC for Embedded and Military Applications.
- Part Number : FET-ZU9EG-EMB-101
- Lead Time : 12 Weeks
- Device Support : Zynq Ultra Scale+
The Development Board equipped with QUAD GbE, DAC, DDS, GPS interface, DMC Interfaces can be used for experimenting Radar Exciter and Array Controller Activities.
Length : mm
Height : mm
Thickness(+/-5%): 1.6mm
Operating Environmental Temperature : -45°c to +85°c
Configuration
JTAG : Yes
QSPI : Yes
UART : Yes
Memory
Quad-SPI Flash: 256Mb
Quad-SPI User Flash: 256Mb
PS DDR4 64-bit SODIMM
PL DDR4 component (16-bit)
Communication
4 Ethernet Ports (PS GEM)
3 UART configuration
Control & IO
Programmable IO Lines: More than 200
Expansion Connectors
Circular Connectors: 11
Clocking
Standard Clock Oscillator: Yes
Clocks (PL-system, PS_CLK, Programmable Clock, SMA, SMA_GT_REF, Ethernet, USB)
Power
+12V Regulator: Yes
RESOURCES
Programmable Logic Cells: 600K
Block RAM(Mb): 32.1
DSP Slices: 2520
Maximum IO Pins: More than 200
Board of Specifications
Length | 138.5mm |
Height | 92.6mm |
Thickness (+/-5%) | 1.6mm |
Operating Environmental Temperature | -45◦C to +85◦C |
JTAG | Yes |
SPI | Yes |
QSPI | Yes |
UART | Yes |
DDR3 | 4Gb (256M x 16) |
Quad-SPI Flash | 128Mb |
EEPROM | 4Kb |
IO Lines >> 100
D-Sub Connectors >> 2
Standard Clock Oscillator >> Yes
+5V Regulator >> Yes
Resources
Featuring the 4 Channel Data Acquisition Card – Zynq 700 Soc(XC7Z045-2FFG900I)
Programmable Logic Cells | 28K |
Block RAM (36 Kb Blocks) | 2.1 Mb (545) |
DSP Slices | 900 |
Look-Up Tables (LUTs) | 17,600 |
Maximum IO Pins | PS IO’s – 128 PL IO’s – 125 |
