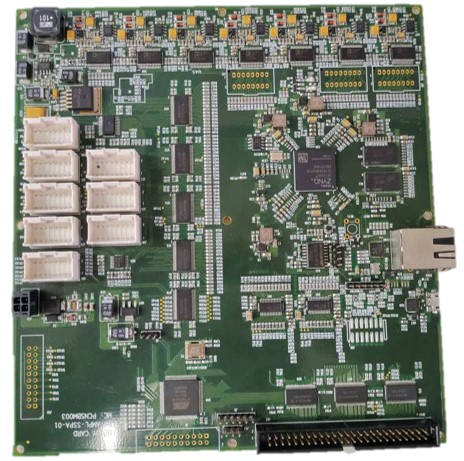

With the Development Board, you can use the Zynq-7000 MP Soc’s tightly connected ARM® processing system and 7-Series programmable logic to construct innovative and powerful designs.

Because of the board’s comprehensive combination of on-board peripherals and extension capabilities, it is appropriate for both beginner and experienced designers.

Length:  174.6 mm

Height:  185 mm

Thickness (+/-5%): 1.6mm

Operating Environmental Temperature: -45°c to +85°c

Data Converters

ADC: AD9280, single channel

Resolution: 8-Bit

Sample Rate (Max): 32 MSPS

SNR: 49dB

SFDR: -66 dB

Operation Between +2.7 V and +5.5 V Supply

Configuration

Onboard configuration circuitry

QSPI Flash:     Yes

SDIO Card Interface (boot)

Memory

Quad-SPI Flash:   256Mb

DDR3: 1GB

EEPROM: 4 KB

Communication

Gigabit Ethernet GMII, RGMII and SGMII

USB OTG 1 (PS) – Host USB

USB UART (PS)

Control & IO

Programmable IO Lines:  30

Expansion Connectors

Headers & Wire Housings WR-WTB 2mmMale Dual 16Pin Connectors

Clocking

50MHz Fixed PL Oscillator

33.33 MHz Fixed PS System Oscillator (Single-Ended CMOS)

Power

+5V Regulator:   Yes

RESOURCES

Programmable Logic Cells:  85K

Block RAM: 4.9 Mb

DSP Slices: 220

Maximum IO Pins: 200
