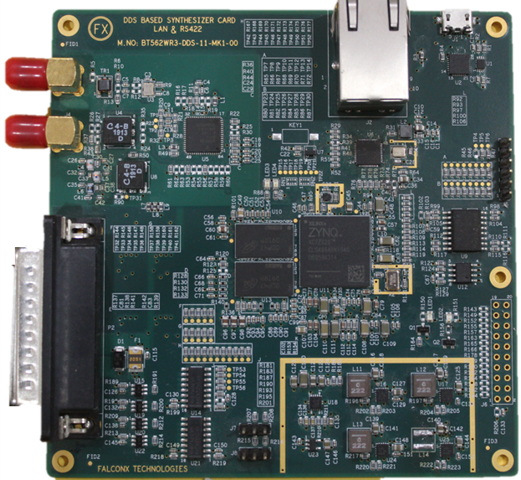

Zynq Based DDS Synthesizer Card
Zynq-7000 SOC Based Digital card is equipped with AD9912 is a direct digital synthesizer (DDS) that features an integrated 14-bit Digital -to – Analog converter (DAC).
- Part Number : FET-ZYNQ-DDS-101
- Lead Time : 4- 8 Weeks
- Device Support : Zynq-7000
Zynq-7000 SOC Based Digital card is equipped with AD9912 is a direct digital synthesizer (DDS) that features an integrated 14-bit Digital-to-Analog converter (DAC).
Used for the Embedded Applications .
Length: 119.00 mm
Height: 119.00 mm
Thickness (+/-5%): 1.60 mm
Operating Environmental Temperature: -45°c to +85°c
Configuration
JTAG : Yes
SPI : Yes
QSPI : Yes
UART : Yes
Data Converters
DAC – AD9912 , 1 GSPS , 14 – Bit
Communication
1G Ethernet Interface
Memory
DDR3 : 4Gb (256M x 16)
Quad-SPI Flash: 128Mb
EEPROM : 4Kb
Control and IO: IO Lines >> 100
Expansion Connectors: FMC Connectors >> 1
Clocking : Standard Clock Oscillator >> Yes
Power : +5V Regulator >> Yes
Coming Soon….
Board of Specifications
Length | 138.5mm |
Height | 92.6mm |
Thickness (+/-5%) | 1.6mm |
Operating Environmental Temperature | -45◦C to +85◦C |
JTAG | Yes |
SPI | Yes |
QSPI | Yes |
UART | Yes |
DDR3 | 4Gb (256M x 16) |
Quad-SPI Flash | 128Mb |
EEPROM | 4Kb |
IO Lines >> 100
D-Sub Connectors >> 2
Standard Clock Oscillator >> Yes
+5V Regulator >> Yes
Resources
Featuring the 4 Channel Data Acquisition Card – Zynq 700 Soc(XC7Z045-2FFG900I)
Programmable Logic Cells | 28K |
Block RAM (36 Kb Blocks) | 2.1 Mb (545) |
DSP Slices | 900 |
Look-Up Tables (LUTs) | 17,600 |
Maximum IO Pins | PS IO’s – 128 PL IO’s – 125 |
